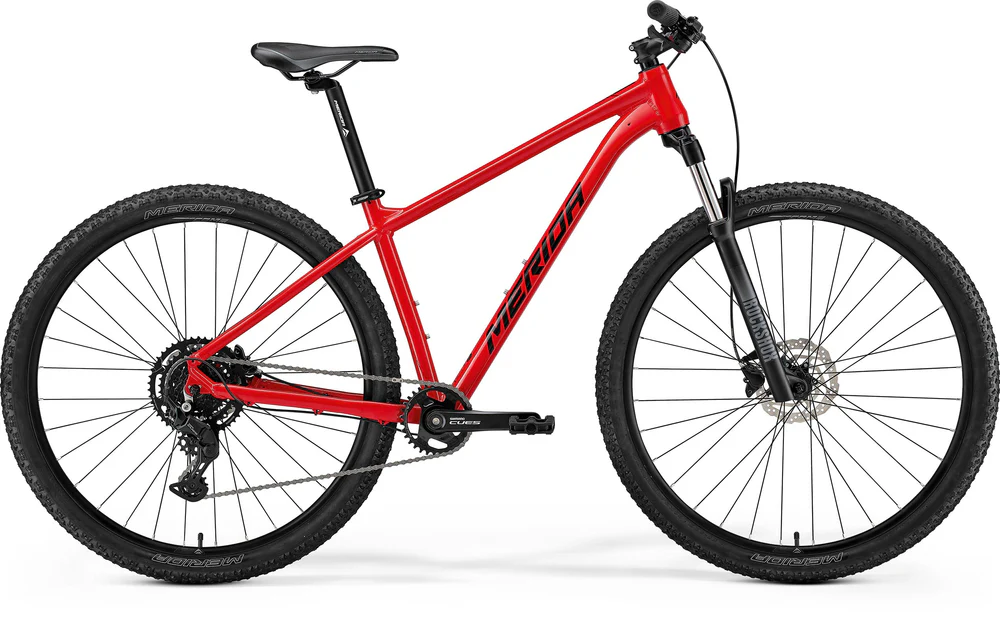

Merida Big Nine 80

Merida Big Nine 80

£850.00

Please select from the product options below before submitting your form if applicable.

Product Code: merb780

Availability: In Stock

Available Options

0% Finance Calculator
Bike Size Guide

Merida’s heartland has always been bombproof aluminium hardtails. Half a century of frame building experience counts for a lot.

All Big Nine and Big Seven models use a sophisticated TFS frame featuring the latest technology:

full internal cable routing for a clean, neat set up,
tapered headtube offering the potential for future upgrades
inboard disc brake mounts protect the brake and maximise stopping power

As much Shimano componentry as possible has been added to complement the modern frame and enhance reliability.

For riders in the middle, riding style can be taken into account. If you are looking for speed and efficiency choose a Big Nine, if you are looking for agility choose a Big Seven.

Bike Brands

Colour

Red
Size

Large, Medium, Small, XL
bottom bracket
Shimano BB-UN101 73-123
brakes
Front: Shimano BR-MT200; hydraulic disc brake caliper with Shimano RT10; 160mm rotor Rear: Shimano BR-MT200; hydraulic disc brake caliper with Shimano RT10; 160mm rotor
brake levers
Shimano MT200
cassette
Shimano CS-LG300-9; 11-46 teeth; 9 speed
chain
KMC xGlide
crankset
Shimano CUES U4000; 32 tooth chainset; Aluminium; Crank length - 170mm (S), 175mm (M and up)
fork
RockShox Judy TK; Coil; 100mm travel Lockout; 46mm fork offset; Max tyre size 29 x 2.25
frame
TFS IV - 6061 aluminium, double butted and technoformed.  Tapered head tube. Chain stay mounted disc brake. Internal cable routing. Mudguard and kick stand mounts. BSA threaded BB. 135mm x 9mm axle. Max. tyre size 29 x 2.25
grips
Merida EC
handlebars
Merida CC; aluminium; 690mm wide; 15mm rise
headset
Merida M2345
material
Aluminum
rear derailleur
Shimano CUES U4000-9; GS
seatpost
Merida CC; 30.9mm diameter; 15 mm layback; Aluminium
shifters
Shimano CUES U4000-9
tyres
Front: Merida K1080; 29 x 2.2; wire bead Rear: Merida K1080; 29 x 2.2; wire bead
wheelset
Rims: Merida CC; 17mm inner rim width; aluminium Spokes: Black steel Front Hub: Shimano HB-TX505; 100 x 9mm; 32 spoke; Centerlock Rear Hub: Shimano FH-TX505; 135 x 9mm; 32 spoke; Centerlock
