Name: Merida Big Nine 20
SKU: merb920
Availability: BackOrder

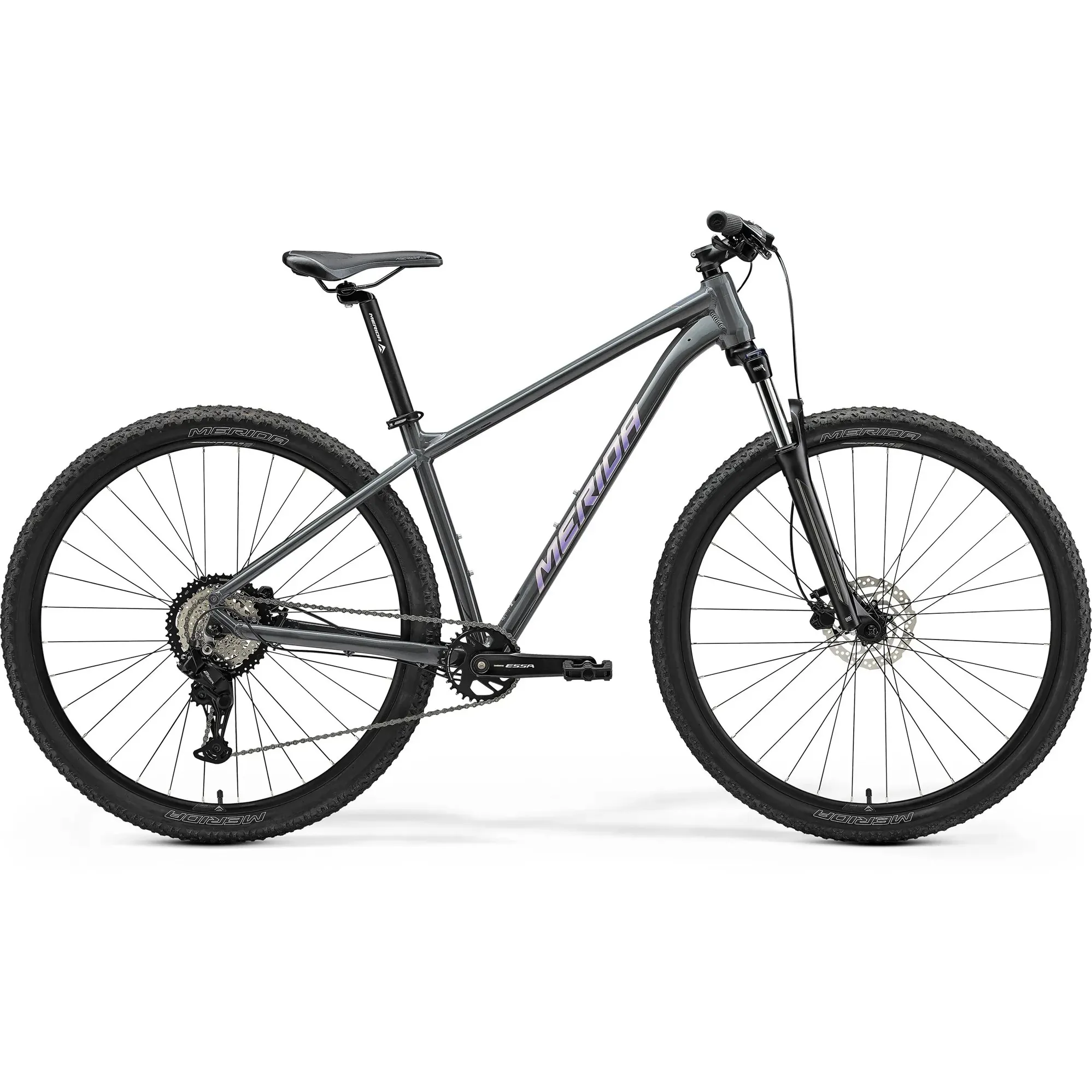

Merida Big Nine 20

£700.00

Please select from the product options below before submitting your form if applicable.

Product Code: merb920

Availability: Out of Stock

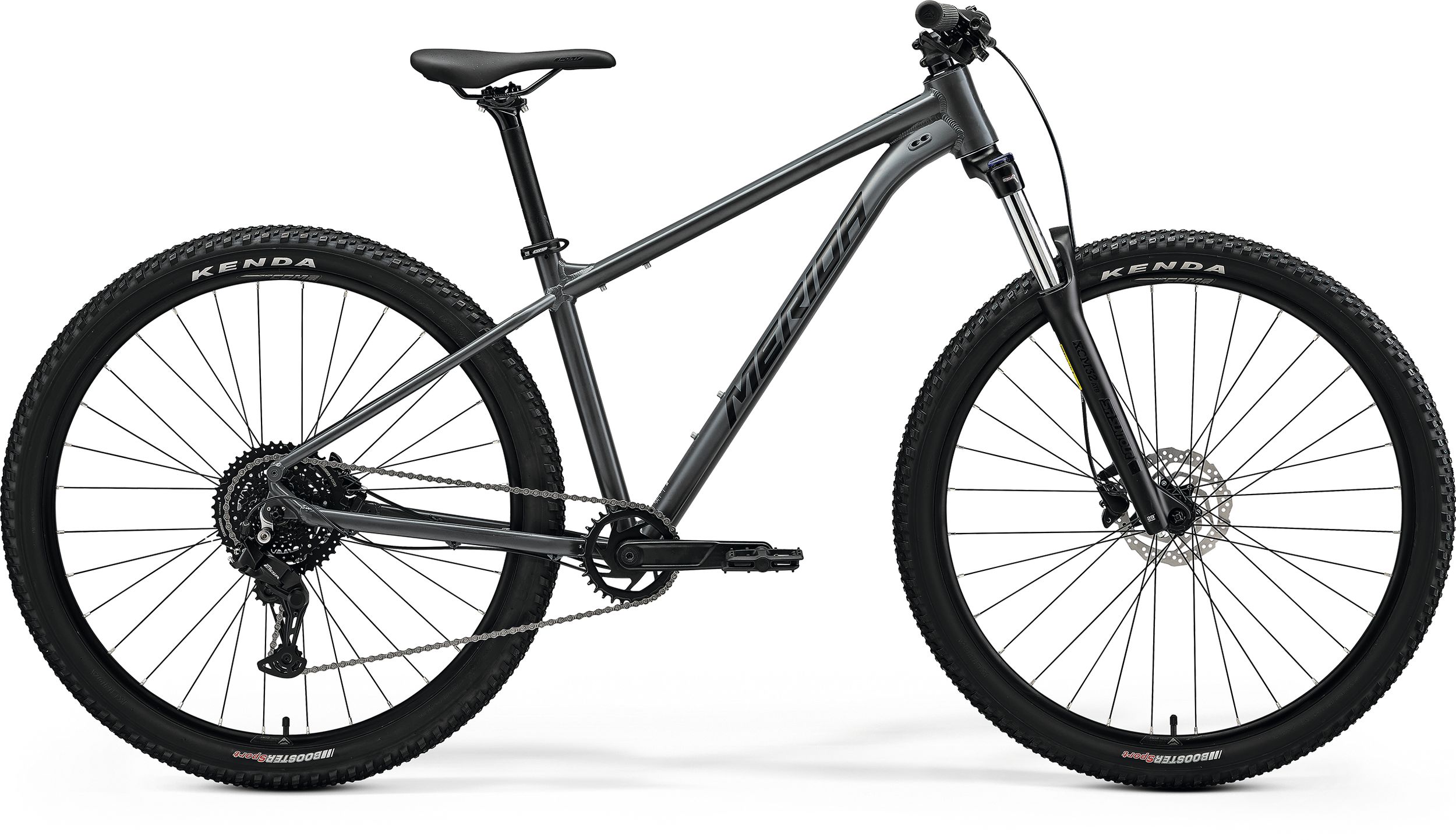

With hydraulic disc brakes, an easy-to-use single ring drivetrain, our latest TFS aluminium frame and a trail-ready 120 mm travel fork, the BIG.NINE 20 is ready to ride. Whether you need a versatile bike for weekend trail fun or a rugged way to get about, the smooth-rolling 29″ wheels and updated, confidence-inspiring geometry will have you covered.

Bike Brands	Merida
Colour	Grey
Size	Large, Medium, XL, XXL

Frame	TFS V - 6061 aluminium, double butted and technoformed. Tapered head tube. Chain stay mounted disc brake. Internal cable routing. Mudguard and kick stand mounts. BSA threaded BB. 135mm x 9mm axle. Max. tyre size 29" x 2.4"
Fork	X-Fusion Migo 32 Air; 120 mm travel; lockout; max. 29x2.4" max. tyre size
Headset	FSA NO.55R/57SC/57B
Stem	Merida Comp CC; material: aluminium; 31.8 mm diameter; 7 degree rise
Bars	Merida CC; material: aluminium; 15mm rise; S - 720mm wide, (M-L) - 740mm wide, (XL-XXL) - 760mm wide
Front Brake	Shimano MT200; hydraulic brake with Shimano RT10; 160 mm
Rear Brake	Shimano MT200; hydraulic brake with Shimano RT10; 160 mm
Rear Mech	Shimano Cues U4000; GS
Shifters	Rear: Shimano Cues U4000
Speed	9
Rims	Merida Comp CC; 20mm inner rim width; Material: aluminium
Front Hub	Shimano TX505; 100x9mm; 32 Spoke; Centerlock
Rear Hub	Shimano TX505; 135x9mm; 32 Spoke; Centerlock
Spokes	Black steel
Front Tyre	Kenda Booster; 29x2.4" 2nd color option: Booster 29x2.4 tanwall
Rear Tyre	Kenda Booster; 29x2.4" 2nd color option: Booster 29x2.4 tanwall
Seat Post	Merida Comp CC; material: aluminium; 30.9mm diameter; in-line
Saddle	Merida Comp SL
Chainset	Shimano Cues UT400-1; 32 tooth chainset; material: aluminium ; Crank length: S - 165mm, (M-XXL) - 170mm
Bottom Bracket	Shimano UN101 LL123
Chain	KMC xGlide
Cassette	SunRace U9 CS-U980 9AZ; 11-46 teeth; 9 speed
Pedals	VP VPE 536
