Merida Crossway 20D
Merida Crossway 20D - Image 2
Merida Crossway 20D - Image 3

Merida Crossway 20D

Price range: £600.00 through £685.00

Please select from the product options below before submitting your form if applicable.

Product Code: mercross20

Availability: In Stock

Available Options

0% Finance Calculator
Bike Size Guide

A Crossway is the perfect blend of comfort, enjoyment and all-round practicality, suitable for leisure rides or commuting. We base all disc brake models around the same lightweight aluminium frame with an urban look, the steep sloping top ube provides plenty of stand over height. The Crossway range can be equipped with mudguards, racks and kickstands for ultimate adaptability.

Bike Brands

Colour

Black, Green, Red
Size

Large, Medium, Small
Black colour:

Frame:

 TFS - 6061 series double butted and technoformed aluminium tubing with new 'urban' look and internal cable routing. Tapered head tube for confidence-inspiring handling. Equipped with mounts for rack, mudguards and kickstand.
Fork: Suntour NEX HLO; Coil; 63mm travel; lockout
Headset: Merida M2345
Stem: Merida TK; aluminium; 25.4mm diameter; adjustable - Length : 100 mm all sizes
Bars: Merida CC; aluminium; 660mm wide; 25mm rise
Front Brake: Shimano BR-MT200 (or Tektro HD-M275) hydraulic brake caliper with Shimano RT10; 160mm rotor
Rear Brake: Shimano BR-MT200 (or Tektro HD-M275) hydraulic brake caliper with Shimano RT10; 160mm rotor
Brake Lever: Shimano BR-MT200 (or Tektro HD-M275 if Shimano supply is delayed)
Front Mech: Shimano FD-TY710
Rear Mech: Shimano RD-M360
Shifters: Shimano ST-EF505
Speed: 24
Rims: Merida CC; 17mm inner rim width; Material: aluminium
Front Hub: Shimano TX505; 100x9mm; 32 spokes; Centerlock
Rear Hub: Shimano TX505; 135x9mm; 32 spokes; Centerlock
Spokes: Black steel
Front Tyre: Merida K1171; 700 x 40C; wire bead
Rear Tyre: Merida K1171; 700 x 40C; wire bead
Seat Post: Merida CC; aluminium; 30.9mm diameter; 15mm lay back
Saddle: Merida Cross Sport
Chainset: Shimano TY301; 48-38-28 teeth chainwheel with 170mm - XXS/SM, 175mm - ML/XXL length crank
Bottom Bracket: FSA TH-7420ST-W, Cartridge Bearing
Chain: Sunrace M84
Cassette: Sunrace CSM668; 11-32 teeth; 8 speed
Pedals: VP Components, VPE-891

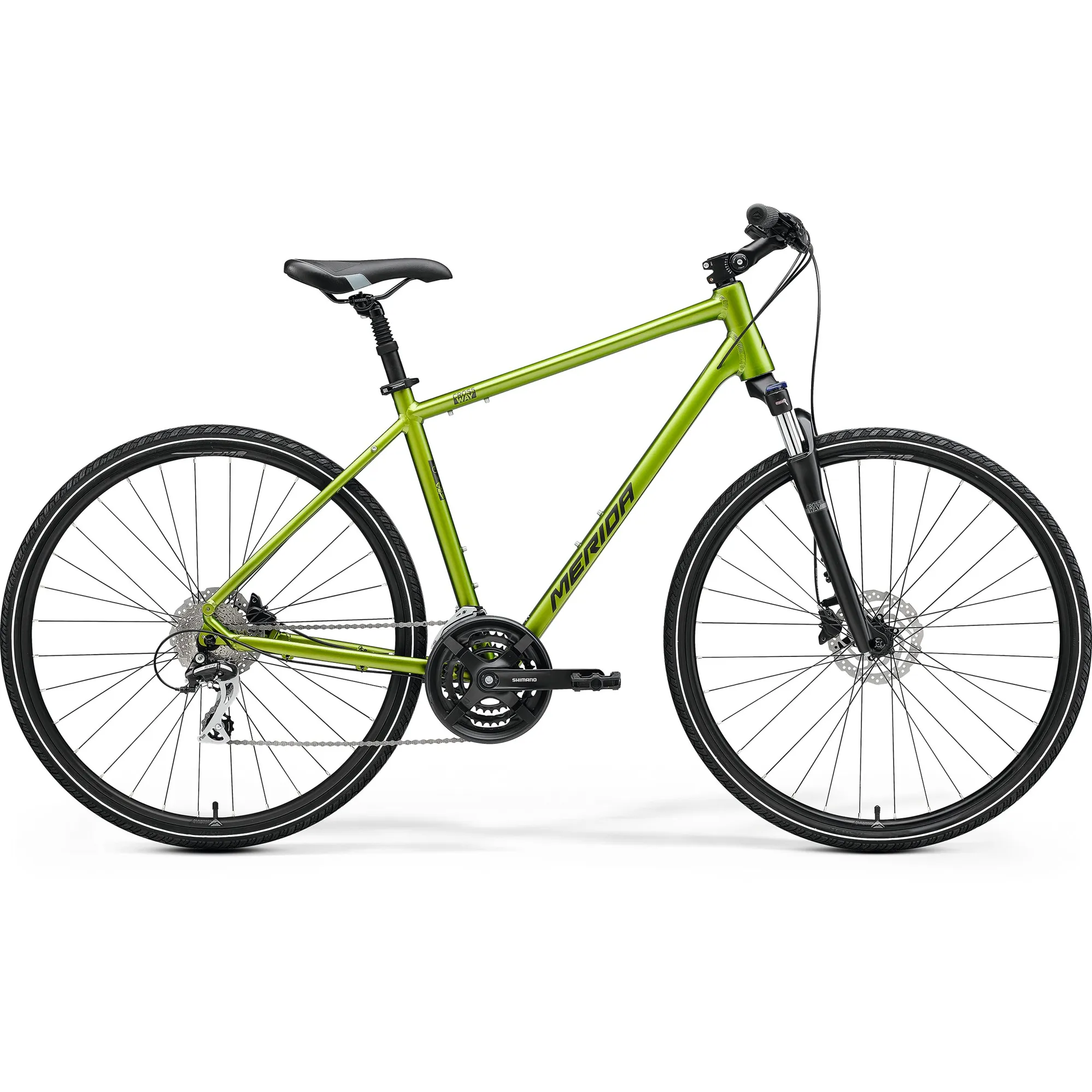

Green Colour:
FRAME CROSSWAY TFS III
FRAME SIZE XXS, XS, S, M, L, XL
COLOR SILK FALL GREEN (BLACK)
FORK SR Suntour NEX HLO
BRAKES Power DS100
ROTORS Shimano RT10
HEADSET FSA TH888/NO.10
HANDLEBAR MERIDA CC
HANDLEBAR STEM MERIDA TK
GRIP MERIDA EC
DERAILLEUR (F) Shimano FD-TY710
DERAILLEUR (R) Shimano RD-M360
SHIFTERS Micro Shift TS39-L / Micro Shift TS39-8R
SEAT POST MERIDA TK
SEAT CLAMP MERIDA COMP QR
SADDLE MERIDA CROSS SPORT
PEDAL VP VPE-891
CHAIN SUNRACE M84
CRANK Shimano TY301
FREEWHEEL SUNRACE CSM668
BOTTOM BRACKET FSA TH-7420ST-W, CARTRIDGE BEARING
HUBS Shimano TX505
RIM MERIDA CC
TYRE FRONT MERIDA K1171
TYRE REAR MERIDA K1171
SPOKES Black steel
MAX. WEIGHT 120 kg

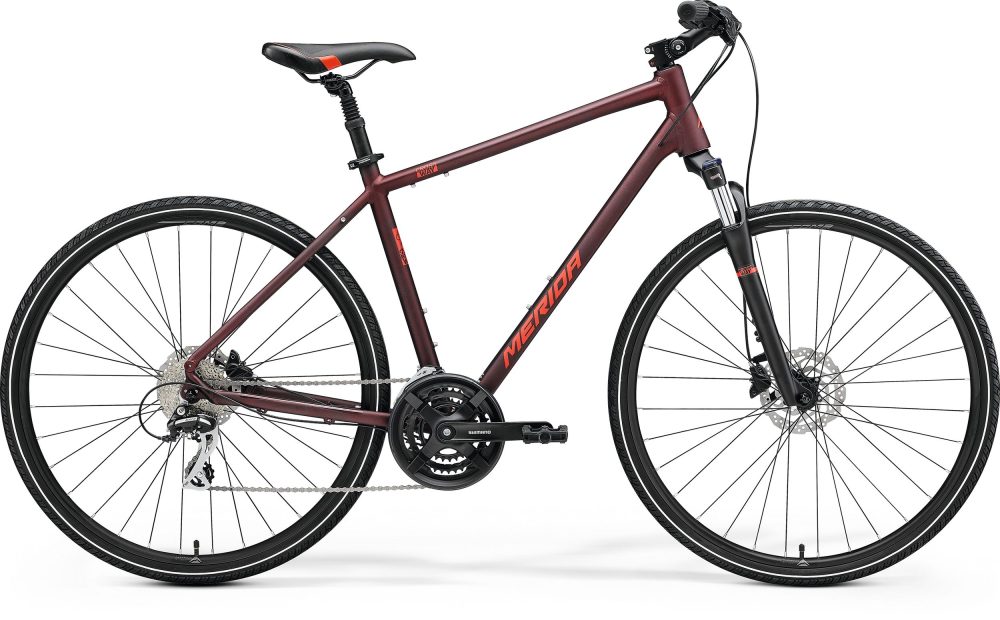

Red Colour:
bottom bracket
FSA TH-7420ST, Cartridge Bearing
brakes
Front: Power DS-100HT 2 piston hydraulic disc brake caliper with Shimano RT10 160mm rotor Rear: Power DS-100HT 2 piston hydraulic disc brake caliper with Shimano RT10 160mm rotor
brake levers
Power DS-100HT
cassette
Sunrace CSM558AU; 11-32 teeth; 8 speed
chain
Sunrace M84
crankset
Shimano TY301; 48-38-28 tooth chainset. Crank length: 170mm (S), 175mm (M,L)
fork
Suntour NEX HLO; Coil; 63mm travel; Lockout. Max tyre size: 700 x 50c
frame
TFS II - 6061 double butted technoformed aluminium tubing with internal cable routing. Tapered head tube, inboard disc mounts, BSA BB standard, 135 x 9mm QR axle standard. Mounts for rack, mudguards and kickstand. Max tyre size 700 x 50c
grips
Merida EC
handlebars
Merida CC; aluminium; 660mm wide; 25mm rise
headset
Merida M2340
material
Aluminum
rear derailleur
Shimano RD-M359
seatpost
Merida TK; 30.9mm diameter; 13mm setback; 40mm seatpost suspension travel
shifters
MicroSHIFT TS39
tyres
Front: Merida K1171; 700x40C; wire bead Rear: Merida K1171; 700 x 40C; wire bead
wheelset
Rims: Merida CC; 17mm inner rim width; aluminium Spokes: Black steel Front Hub: Shimano TX505; 100x9mm wide; 32 spoke holes; Center lock Rear Hub: Shimano TX505; 135x9mm wide; 32 spokes; Center lock
