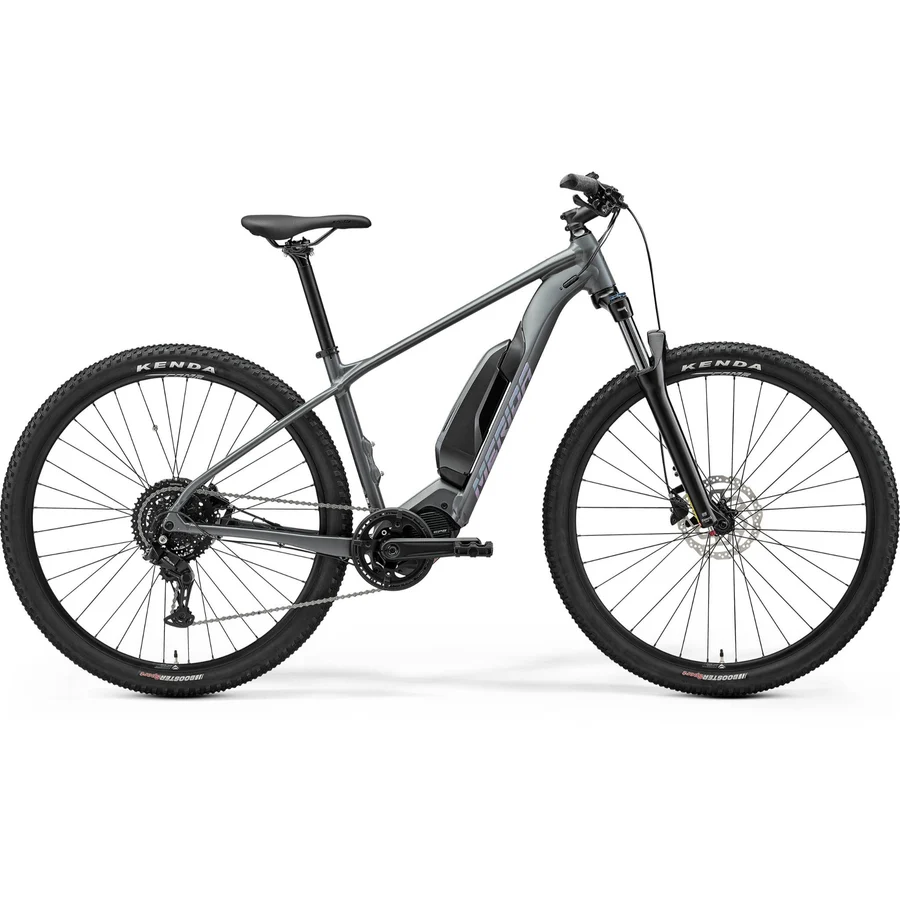

Merida eBig Nine 300 SE

Merida eBig Nine 300 SE

£2,100.00

Please select from the product options below before submitting your form if applicable.

Product Code: mereb300

Availability: Out of Stock

Available Options

0% Finance Calculator
Bike Size Guide

You don’t need to spend a fortune to enjoy e-biking, Merida’s budget-friendly eBig Nine 300 SE delivers a quality ride thanks to an aluminium frame and powerful but refined Shimano EP5 drive unit and the convenience of an easily removable externally mounted 504wh battery.

Powerful Shimano hydraulic disc brakes are on hand to keep control no matter what the weather and the tough, long-lasting CUES drivetrain offers plenty of gearing for off-road adventures or city streets.

Bike Brands

Colour

Grey
Size

Large, Medium, XL

Frame- Lite - Hydroformed 6066 aluminium with internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Complete with mounts for mudguards and kickstand. Max. tyre size 29" x 2.25"

Fork- Suntour XCM34-Boost LOR DS; 100mm; Tapered; 51mm fork offset; 29x2.4" max tyre size

Headset- Merida-2341 (for the steerer 1-1/8"~1.5") with 10mm*2 spacers

Stem- Merida Comp CC; aluminium; 31.8mm diameter; 7 degree - length: 90 mm all sizes

Handlebar- Merida Expert; aluminium; 680mm wide; 15mm rise

Grip- Merida Comp TK

Brake Type- Hydraulic Disc

Front Brake- Shimano MT-200; 2 piston caliper with Shimano RT10; 180 mm rotor

Rear Brake- Shimano MT-200; 2 piston caliper with Shimano RT10; 180 mm rotor

Front Tyre- Kenda Booster; 29x2.2"; wire

Rear Tyre- Kenda Booster; 29x2.2"; wire

Rim- Merida Comp TK; 20mm inner rim width; aluminium

Spokes- Black stainless ; black nipples

Front Hub- Shimano QC300; 100x9mm; 32 spoke; Centerlock

Rear Hub- Shimano TC500-HM-B; 148x12mm; 36 spoke; Centerlock

Speeds- 8

Rear Derailleur- Shimano Essa

Shift Levers- Shimano ALTUS

Chain- KMC Z8.3 EPT

Cassette- Shimano HG300; 11-45 teeth; 8 speed

Chainset- Prowheel EB11; 165mm for all sizes - cranks: Prowheel Pro38P-S16-49; 38 ATC plus

Pedals- VP VPE-891

Saddle- Merida Expert TK; 168 width

Seat Post- Merida Comp CC; aluminium; 30.9mm diameter; 0mm layback

Motor- Shimano EN604 Battery ; 504Wh, Shimano EP5; 60Nm

Battery Capacity- 504Wh

eBike Display- Shimano SC-EN500
