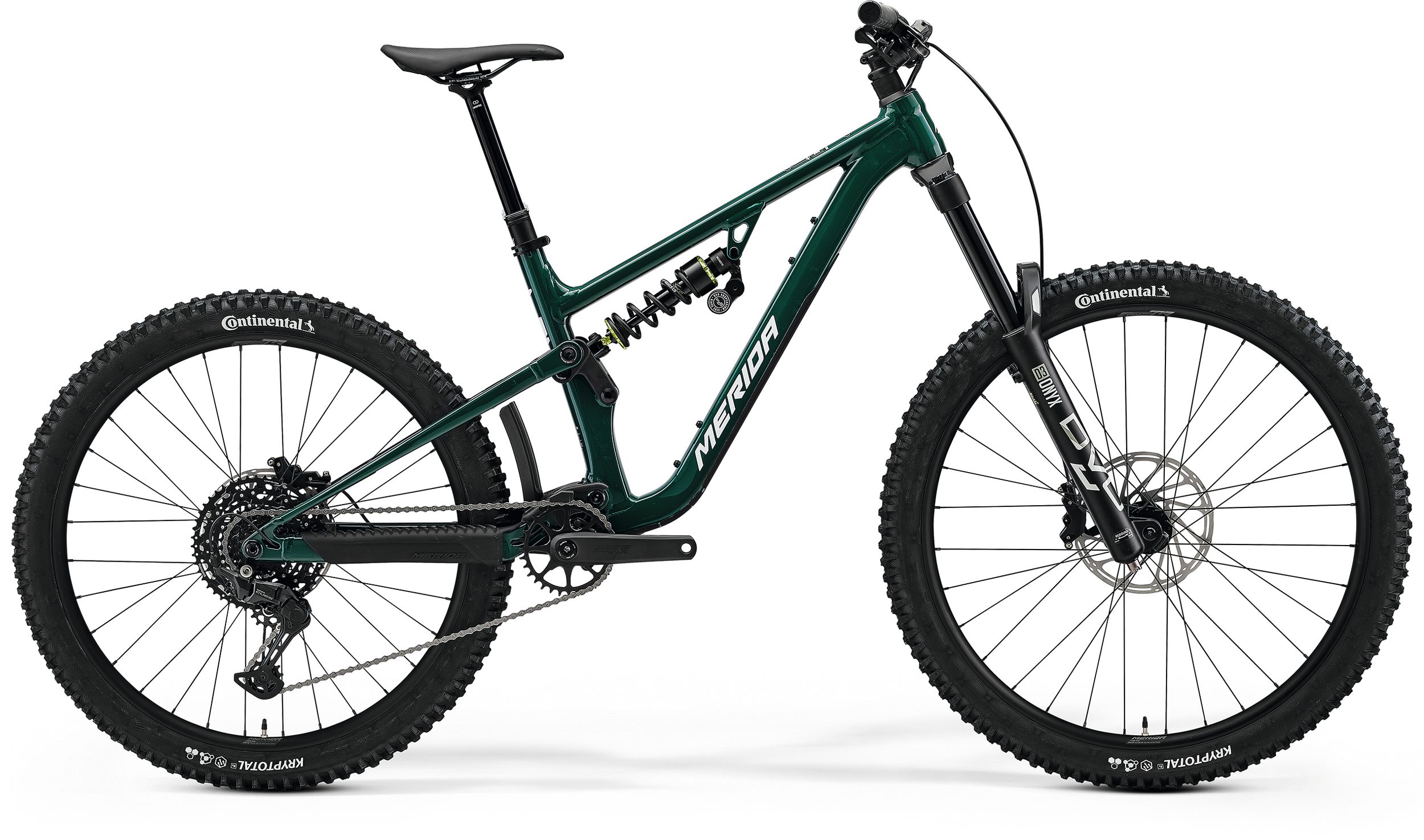

Merida One-Sixty FR 400

Merida One-Sixty FR 400

£2,650.00

Please select from the product options below before submitting your form if applicable.

Product Code: mer160fr400

Availability: Out of Stock

Available Options

0% Finance Calculator
Bike Size Guide

Built for progression, built tough. The ONE-SIXTY FR 400 builds on the proven performance of our aluminium enduro frame and cranks the volume up. The music? Heavy metal, thanks to a coil sprung back end plus longer travel 180 mm fork, mixed wheel size handling for a ride that’s ready to get rad. We’ve prioritised suspension performance and durability over drivetrain bling to create a bike that’s ideal for rippers on a budget or riders that go hard every time they hit the bike park.

Bike Brands

Colour

Green
Size

Large, Medium, Small, XS, XL
Frame Lite III - Aluminium, Next Generation enduro geometry, internal cable routing, long seat post insert depth. Boost axle standard, threaded BB, trail mount and bottle bosses, flip chip for mullet or 29er. Max tyre size - 2.5"
Fork DVO Onyx 38 D3; Air; 180 mm travel; Tapered; 44 mm fork offset; 29x2.60" max. tyre size
Rear Shock DVO Jade X core; coil; spring rate: XShort - 300 lbs, Short - 350 lbs, Mid - 400, Long - 450 lbs, Xlong - 500 lbs
Headset Acros ICR Merida external neck; Upper and lower IPS sealing
Stem Merida Comp TR; material: aluminium; 35 mm diameter; 0 degree rise; Length: 40mm
Bars Merida Comp TR II; material: aluminium; 780mm wide; 35mm rise
Front Brake SRAM DB4; 4 piston with SRAM CenterLine; 203mm
Rear Brake SRAM DB4; 4 piston with SRAM CenterLine; 200mm
Rear Mech Shimano CUES U6000; GS
Shifters Rear: Shimano CUES U6000
Speed 10
Rims Merida Comp TR II; 28mm inner rim width; material: aluminium; Tubeless ready (Stans 30mm tubeless tape installed and valves not included); front 29"; rear 27.5"
Front Hub Novatec SL-TEAM D041SB-B15; 110x15mm; 32 Spoke; 6 bolt
Rear Hub Novatec SL-TEAM D442SB-B12-A4A-HG; 148x12mm; 32 Spoke; 6 bolt
Spokes Double Butted Black stainless w/black nipples
Front Tyre Continental Kryptotal-F; 29x2.4"; kevlar bead; TR; Enduro casing; Soft Compund
Rear Tyre Continental Kryptotal-R; 27.5x2.4"; kevlar bead; TR; Enduro Casing; Soft Compound
Seat Post Merida Expert TR II; 34.9mm diameter; in-line; (XShort-Short) - 150mm, Mid - 170mm, Long - 200mm, XLong - 230mm seat post travel
Saddle Merida Comp SL; 25% recycled material; V-mount
Chainset Merida Expert TR II; 32 tooth chainset; Crank length: 165mm
Bottom Bracket Samox BSA 24mm EB2401
Chain KMC xGlide
Cassette Shimano LG300; 11-48 teeth; 10 speed
Pedals Not Included
