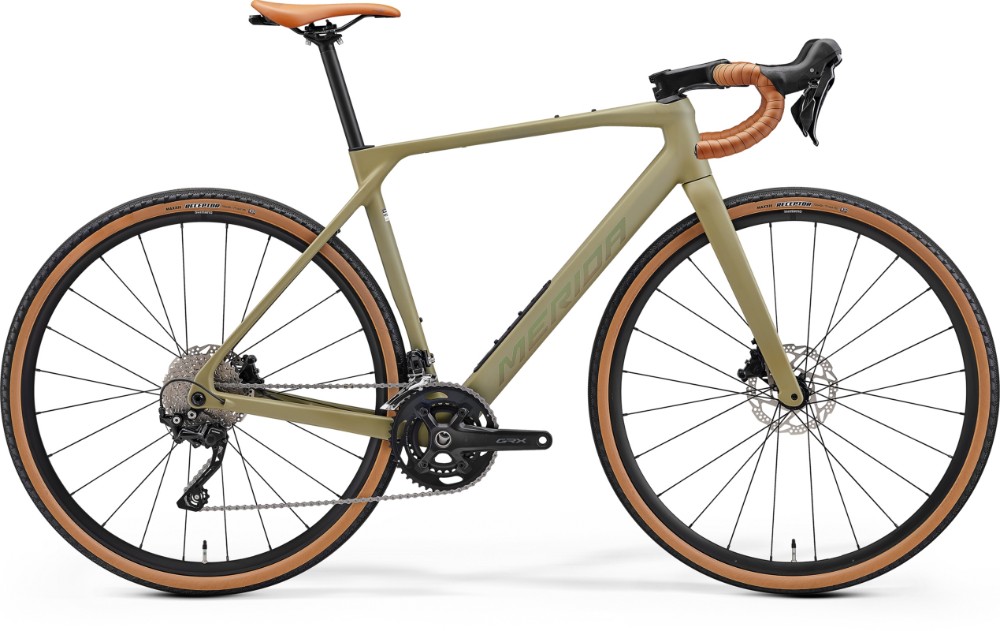

Merida Mission 4000

Merida Mission 4000

£2,250.00

Please select from the product options below before submitting your form if applicable.

Product Code: mermis4000

Availability: Out of Stock

Available Options

0% Finance Calculator
Bike Size Guide

The entry in to the Mission gravel racing family. Featuring the same CF4 carbon frame but equipped with a more wallet-friendly yet gravel-proven specification package.

Fast, capable and Composed. Our entry-level carbon Mission 4000 is designed for the high-speed, high-stakes world of gravel racing and is based on our latest CF4 carbon fibre gravel race frame. Add high-volume, fast-rolling, off-road-tough gravel tyres, Shimano’s proven GRX groupset, Shimano wheels, and a flared handlebar to maximise control on rough tracks, and you have the perfect mix of low weight, sharp but stable handling, and comfort — ideal for fast-paced gravel rides or rough road routes.

Bike Brands

Colour

Green
Size

Large, Medium, Small, XS, XL
Frame
  • CF4 II; carbon; 100 x12mm / 142 x 12mm axle standard; BSA bb standard; max. tyre size -700x40C
Fork
  • Mission CF4 II; Tapered; material: carbon; 700x45C max. tyre size
Gears
  • 20
Shifters
  • Front: Shimano GRX 400; disc, Rear: Shimano GRX 400; disc
Front Derailleur
  • Shimano GRX400
Rear Derailleur
  • Shimano GRX400
Bottom Bracket
  • attached
Chain
  • KMC X10
Chainset
  • Shimano GRX600; 46-30 tooth chainset; Crank length: (XXS-XS) - 165mm, (S-M) - 170mm, (L-XL) - 172.5mm
Cassette
  • Shimano CS-HG50; 11-36 teeth; 10 speed
Brake Lever
  • Shimano GRX 410
Front Brake
  • Shimano GRX400; Hydraulic disc with Shimano RT54; 160mm
Rear Brake
  • Shimano GRX400; Hydraulic disc with Shimano RT54; 160mm
Grip
  • Merida Road Comp
Handlebar
  • Merida Expert GRII; material: aluminium; (XS-S) - 400mm wide, M - 420mm wide, (L-XL) - 440mm wide
Stem
  • Merida Team CC III; material: aluminium; 31.8 mm diameter; -6 degree rise; Length: (XXS-S) - 90mm, M - 100mm, (L-XL) - 110mm
Head Set
  • Acros ICR Merida External neck w/diecast splitring
Pedal
  • Not included
Saddle
  • Merida Comp SL; 22% recycled material; V-mount
Seat Post
  • Merida Expert SL; 27.2mm diameter; in-line; material: carbon
Wheel Size
  • 700c
Rims
  • Shimano WH-RX180-700C; CL; 100x12mm; 142x12mm; 25mm inner rim width; 25mm rim depth; Centerlock; material: aluminium
Spokes
  • Part of wheelset - Shimano WH-RX180-700C
Front Hub
  • Part of wheelset - Shimano WH-RX180-700C
Rear Hub
  • Part of wheelest - Shimano WH-RX180-700C
Front Tyre
  • Maxxis Receptor; 700x40C; Wire; EXO
Rear Tyre
  • Maxxis Receptor; 700x40C; Wire; EXO
Colour
  • Silk Low key green flip flop purple
Season
  • 2026
Other
  • Disc cooler F/R, Trunk bag x 1 pc, bottle cage and Merida Multitool with saddle box
