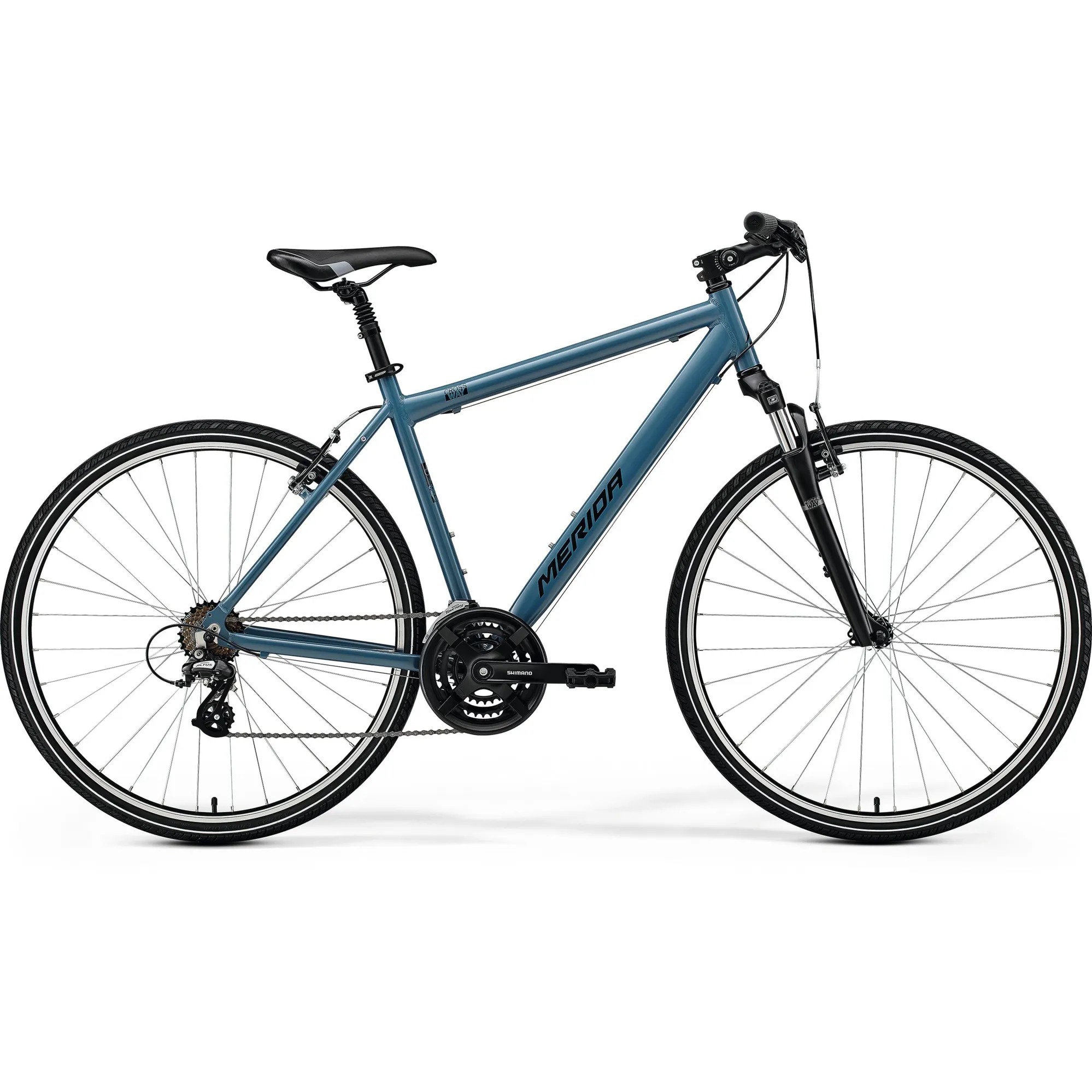

Merida Crossway 10-V

Merida Crossway 10-V

£550.00

Please select from the product options below before submitting your form if applicable.

Product Code: mercross10G

Availability: In Stock

Available Options

0% Finance Calculator
Bike Size Guide

Made from high-quality, lightweight aluminium, with the ability to mount mudguards, racks and kickstands, the Crossway range is the perfect choice for everyday riding.

Bike Brands

Colour

Blue
Size

M/L, M, L, S
Frame
DT - 6061 double butted technoformed aluminium. BSA BB standard, 135 x 9mm QR axle standard. Mounting points for rack, mudguards and kickstand. Max tyre size 700 x 42c
Fork
SR Suntour NEX; Coil; 63mm travel; Max tyre size: 700x50C
Gears 21
Shifters
Shimano ST-EF500-7
Front Derailleur
Shimano FD-TY510-3
Rear Derailleur
Shimano RD-M310-7
Bottom Bracket
FSA TH-7420ST, 68-124
Chain Sunrace CNM84
Chainset
Shimano TY301; 48-38-28 tooth chainset; Aluminium; Crank length - 170mm (XXS/XS/S), 175mm (M/L/XL)
Cassette
Shimano MF-TZ500; 14-28 teeth; 7 speed
Brake Lever Promax
Front Brake
Promax MTV-117A; V-brake
Rear Brake
Promax MTV-117A; V-brake
Grip Merida EC
Handlebar
Merida CC; steel; 620mm wide; 30mm rise
Stem
Merida TK; aluminium; 25.4mm diameter; adjustable - Length - 100mm (all sizes)
Head Set FSA TH888
Pedal VP VPE-891
Saddle Merida Cross Sport
Seat Post
Merida TK; 27.2mm diameter; 13mm layback; 40mm seat post travel
Wheel Size 700c
Rims
Merida CC; 17mm inner rim width; aluminium
Spokes Steel UCP
Front Hub
Joytech JY-751DSE; 100 x 9mm; 32 spoke
Rear Hub
Joytech JY-752DSE; 135 x 9mm; 32 spoke
Front Tyre
Merida K1171; 700 x 40C; wire bead
Rear Tyre
Merida K1171; 700 x 40C; wire bead
Colour Silk Blue/Black
